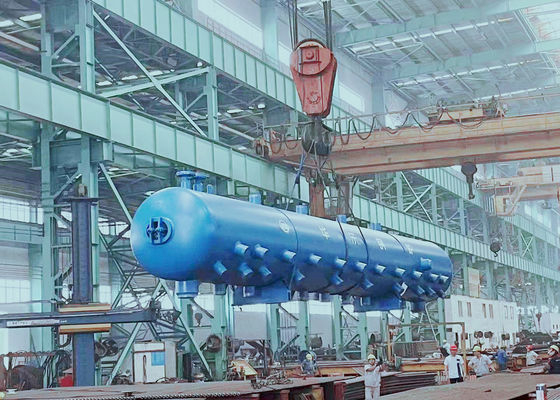

SA516-70 Drum Boiler Tekanan Pabrik Gula Untuk Menyimpan Air Panas
Detail Produk
| Nama Produk: | Drum uap | Aplikasi: | Sistem Boiler dan Sistem Industri |
|---|---|---|---|
| Bahan: | SA516-70 | Sertifikasi: | ISO9001, ASME, EN |
| Menyoroti |
Drum boiler tekanan SA516-70,drum boiler tekanan Pabrik Gula,drum boiler uap SA516-70 |
||
Deskripsi Produk
Bagian Boiler Steam Drum Terbuat dari SA516-70 untuk Pabrik Gula dalam Standar ASME
Definisi
Drum uap boiler adalah bejana tekan terpenting dalam boiler industri untuk menyimpan air panas dan uap.Dalam sistem pipa boiler industri, tidak semua air panas dapat sepenuhnya diuapkan menjadi uap, melainkan campuran uap dan air panas.Karena air panas jenuh membutuhkan lebih banyak panas untuk diubah menjadi uap, drum uap boiler adalah peralatan yang diperlukan.Steam drum memisahkan air panas dan uap, dimana campuran masih mengalir kembali untuk dipanaskan kembali melalui down comer.
Klasifikasi
| Tekanan | Rendah | Tengah | Tinggi | Sangat tinggi |
| Diameter dalam (mm) |
∅ 800-1200 |
∅ 1400-1600 |
∅ 1600-1800 |
∅ 1600-1800 |
| Ketebalan (mm) | 16-25 | 32-46 | 60-100 | 80-100 |
| Bahan | Baja karbon | Baja karbon & baja paduan | Baja karbon & baja paduan | Baja paduan |
Aksesoris
Komponen utama dalam sistem boiler adalah boiler feedwater heater, deaerator, boiler, feed pump, economizer, boiler, superheater, attemperator, sistem steam, kondensor dan pompa kondensat.Selain itu ada set kontrol untuk memantau aliran air dan uap, aliran bahan bakar, aliran udara dan penambahan perlakuan kimia.
Kontrol kualitas
1. Laporan uji dampak dan perhitungan Kekuatan dengan informasi bahan yang diterapkan.
2. 100% NDT (inspeksi non-destruktif) laporan pelat baja, tabung dan elektroda
3. Laporan inspeksi uji penetran sinar-X, -ray dan cair (jahitan las): untuk memastikan kualitas seluruh boiler
4. Laporan uji hidraulik: pastikan tekanan dan keamanan kerja standar
Sorotan Produk
