Industrial Boiler Economizer Heat Exchanger Tubes, Boiler Fin Tube Untuk Perpindahan Panas
Detail Produk
| Aplikasi: | Bagian boiler | Tekanan: | Tekanan Rendah / Tinggi |
|---|---|---|---|
| Rentang Aplikasi: | Pembangkit listrik, Industri | Spesifikasi: | Disesuaikan |
| Perlakukan Permukaan: | Dilukis | Kode HS: | 3215960855 |
| Fungsi: | Penukar panas | Bahan: | Baja karbon |
| Menyoroti |
tabung sirip spiral,tabung sirip penukar panas |
||
Deskripsi Produk
Deskripsi Produk

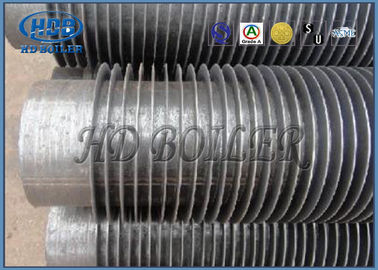

Fin Tube, Extruded Fin tube, Welding Fin tube, L / LH Type Fin Tube, H Type Fin tube dengan Bahan A179 / Alu1060, stainless steel, tembaga, tembaga nikel
| Parameter teknik | Tingkat tinggi sirip 0-16mm (atau diameter luar sirip φ25-φ75); Lapangan sirip 2.0-5.0mm;Panjang tabung finning 0,5 ~ 14m. |
| Tabung finning logam tunggal | Aluminium murni 1060 atau paduan aluminium 6063.6061. Diameter luar Harus kurang dari 40mm |
| Tabung finning berguling logam ganda | Perlindungan berbasis tabung dari lapisan luar aluminium tabung, tahan korosi, Berbasis tabung dapat dibuat dari pipa baja karbon, selain, tahan karat tabung baja dan tabung tembaga juga bisa digunakan, serta tabung paduan titanium |
| Paket | Tabung bersirip aluminium dikemas dengan baik dalam film plastik di bagian dalam dan rangka baja di luar |
| PRODUK | TIPE | BAHAN TABUNG | BAHAN FIN | UKURAN TABUNG | UKURAN FIN |
| Tabung Bersirip Penukar Panas | Tabung Sirip Ekstrusi | Semua Jenis Bahan dapat diterapkan | Aluminium A1100 | 15.88 ~ 50.8 | 7 ~ 11.5FPI |
| Tinggi Sirip Max 16mmH | |||||
| Tabung Sirip L-Foot | Semua Jenis Bahan dapat diterapkan | Tembaga C1100, C1220 | 12,70 ~ 50,8 | 7 ~ 11.5FPI | |
| (Jenis Bungkus) | Tinggi Sirip Max 16mmH | ||||
| G-Fin Tube (Tipe Tertanam) | Aluminium A1100, A1050, A1060 | ||||
| Tabung Bersirip Welded Frekuensi Tinggi | Tabung Baja Karbon A179 | Tabung Baja Karbon | 12,70 ~ 160 | 1.5 ~ 7FPI | |
| Tabung Baja Tahan Karat | Tabung Baja Tahan Karat | 0,8 ~ 3,2 mm.Ketebalan | |||
| Bahan Baja Paduan | Bahan Baja Paduan | ||||
| Tabung Bersirip Tinggi Paduan Tembaga & Tembaga Integral | C12200, C11000, C70600 | C12200, C11000, C70600 | 15.88 ~ 22.23 | 5 ~ 9FPI | |
| Maksimal 12mm.H | |||||
| Tabung Bersirip Oval | Tabung Baja Karbon | Tabung Baja Karbon | Semua Ukuran Tersedia | 5 ~ 15FPI | |
| Tabung Baja Tahan Karat | Tabung Baja Tahan Karat | ||||
| Bahan Baja Paduan | Bahan Baja Paduan | ||||
| Tabung Paduan Tembaga & Tembaga | Tabung Paduan Tembaga & Tembaga | ||||
| Tabung Sirip Monometalik | Tabung Sirip Rendah | Baja Karbon, baja tahan karat, titanium, tembaga, kuningan, paduan nikel, dll. | - | 9,52 ~ 40 | 12, 16, 19 28 FPI, dll. |
| Tabung Turbo-C | |||||
| Tabung Turbo-E | |||||
| Tabung Bergelombang | Semua Jenis Material | - | 6,35 ~ 40 | 2 ~ 9FPI |
informasi perusahaan
HD Boiler didirikan pada tahun 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (diperdagangkan sebagai HD Boiler), adalah produsen industri profesional, memproduksi boiler utilitas, boiler industri, boiler HRSG dan semua jenis bagian boiler, seperti panel waterwall, economizers , pemanas awal udara, pemanas super, header, tabung sirip spiral, tabung sirip H, pipa panas, dll. Boiler HD terletak di Taman Industri Dong Lai, pinggiran timur Kota Gang Zhang Jia.Lokasi pabrik adalah sekitar 150km Expressway ke Shanghai Port atau 60km State Road ke Suzhou atau Wuxi, dengan transportasi yang meluas ke segala arah dengan mudah dan cepat.
