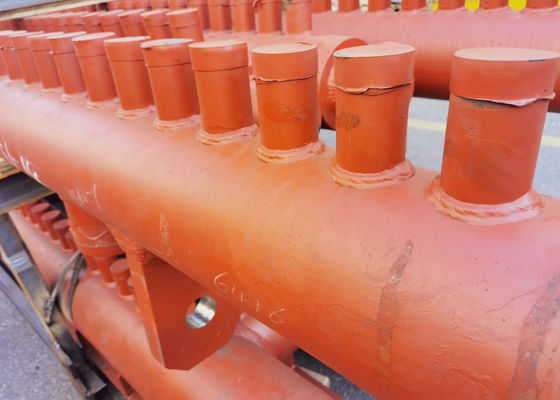

Header Manifold Boiler Pembangkit Listrik Tenaga Uap dengan Suku Cadang Boiler Sertifikasi ISO9001
Detail Produk
| Nama Produk: | Header Manifold Boiler | Bahan: | Baja Karbon atau Baja Paduan |
|---|---|---|---|
| Aplikasi: | Pembangkit Listrik Steam Boiler | Lukisan: | Disesuaikan |
| Menyoroti |
Header Manifold Pembangkit Listrik Uap,Header Manifold Boiler Baja Paduan,Header Manifold Boiler Baja Karbon |
||
Deskripsi Produk
Header Manifold Boiler Pembangkit Listrik Tenaga Uap dengan Suku Cadang Boiler Sertifikasi ISO9001
Deskripsi Produksi
Header boiler, atau manifold boiler dirancang untuk menyederhanakan perpipaan di dekat boiler, mengurangi waktu pemasangan, biaya tenaga kerja, dan suku cadang yang digunakan.Tersedia dalam berbagai pilihan cabang dengan sambungan saluran masuk dan saluran keluar berulir.Hanya untuk aplikasi pemanasan loop tertutup.
Ketel header, juga disebut sub-drum, banyak digunakan dalam pembangkit listrik, petrokimia, baja, semen, konstruksi dan industri lainnya.
Spesifikasi
1. Badan steam header diameter: 6inch, 8inch, 10inch, 12inch, dan seterusnya
2. Pipa cabang: 1 ', 2', 3 ', 4', 5 ',6 'dan seterusnya.
3. P.ressure: 1.0mpa, 1.25mpa, 1.6mpa, 2.0mpa, 2.5mpa
4. Material: baja karbon bejana tekan.
Parameter Teknis
| Tubuh Bahan | CBaja arbon (20 #, 20G, SA192, A-1), Baja Paduan (15CrMoG, 12Cr1MoVG, T11, T22) dll. |
| Tipe | Badan kepala, penutup ujung, sambungan tabung, cole tangan, soket termometer; tabung baja mulus, bagian tekanan |
| Keuntungan | Pengelasan lanjutan, operasi yang aman dan andal |
| Tekanan Pekerjaan | Tergantung materi |
| Standar | China GB, ASME |
| Dimensi | Kustomisasi |
| Pengelasan | SMAW, SAW, GTAW (TIG) |
|
Manufaktur proses |
Bahan → Ingot → Hot / Cold-Rolling → Perlakuan panas (Normalisasi + tempering) → Inspeksi →Pengeboran→Pengelasan→RT, PT→ Inspeksi → Perlakuan panas →Tekanan hidrolik uji→Lukisan→Pengemasan |
| Catatan | Pesanan khusus juga diterima. |
Sorotan Produk
