Stainless Steel Coal Fired Boiler Fin Tube Cold Finished Untuk Penukar Panas
Detail Produk
| Nama Produk: | Tabung Bersirip Spiral | Bahan: | Besi tahan karat |
|---|---|---|---|
| Aplikasi: | Bagian Pemanas, Penukar Panas | MEMUAT: | Shanghai |
| Sertifikat: | ASME, ISO90001, SGS, EN | Kata kunci: | Tabung Bersirip Welded Frekuensi Tinggi |
| Menyoroti |
Tabung Fin Boiler berbahan bakar batubara,TUV Boiler Fin Tube,Cold Finished Fin Tube |
||
Deskripsi Produk

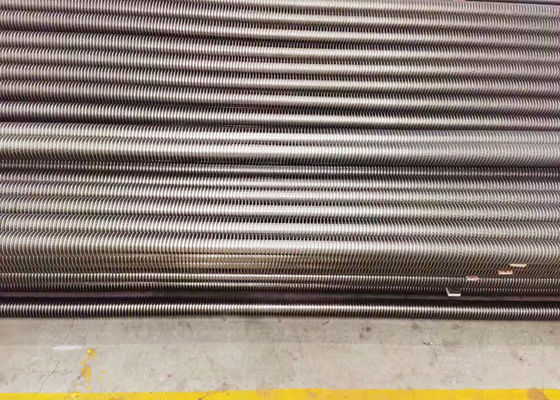

Bagian Boiler Penukar Panas Spiral Tabung Bersirip Stainless Steel untuk Boiler Berbahan Bakar Batubara
Detil Deskripsi:
Tabung bersirip spiral adalah elemen perpindahan panas yang efisien dengan sirip spiral.Area perpindahan panasnya beberapa kali hingga puluhan kali lipat dari tabung telanjang, yang dapat memperkuat perpindahan panas, mengurangi hambatan aliran dan konsumsi logam, sehingga dapat meningkatkan ekonomi dan keandalan pengoperasian peralatan pertukaran panas.
Saat ini, tabung bersirip spiral telah banyak digunakan di berbagai boiler.Tabung bersirip spiral dapat diproduksi dengan berbagai metode.Saat ini, tabung bersirip yang digunakan dalam peralatan pertukaran panas seperti boiler dan bejana tekan sebagian besar diproduksi dengan metode berikut: tabung bersirip spiral pengelasan resistansi frekuensi tinggi, tabung bersirip spiral brazed dan tabung bersirip spiral integral.
Semua jenis tabung sirip yang dapat kami suplai ditunjukkan seperti di bawah ini:
| PRODUK | TIPE | BAHAN TABUNG | BAHAN FIN | UKURAN TABUNG | UKURAN FIN |
| Tabung Bersirip Penukar Panas | Tabung Sirip Ekstrusi | Semua Jenis Bahan dapat diterapkan | Aluminium A1100 | 15.88 ~ 50.8 | 7 ~ 11.5FPI |
| Tinggi Sirip Max 16mmH | |||||
| Tabung Sirip L-Foot | Semua Jenis Bahan dapat diterapkan | Tembaga C1100, C1220 | 12,70 ~ 50,8 | 7 ~ 11.5FPI | |
| (Jenis Bungkus) | Tinggi Sirip Max 16mmH | ||||
| G-Fin Tube (Tipe Tertanam) | Aluminium A1100, A1050, A1060 | ||||
| Tabung Bersirip Welded Frekuensi Tinggi | Tabung Baja Karbon A179 | Tabung Baja Karbon | 12,70 ~ 160 | 1.5 ~ 7FPI | |
| Tabung Baja Tahan Karat | Tabung Baja Tahan Karat | 0,8 ~ 3,2 mm.Ketebalan | |||
| Bahan Baja Paduan | Bahan Baja Paduan | ||||
| Tabung Bersirip Tinggi Paduan Tembaga & Tembaga Integral | C12200, C11000, C70600 | C12200, C11000, C70600 | 15.88 ~ 22.23 | 5 ~ 9FPI | |
| Maksimal 12mm.H | |||||
| Tabung Bersirip Oval | Tabung Baja Karbon | Tabung Baja Karbon | Semua Ukuran Tersedia | 5 ~ 15FPI | |
| Tabung Baja Tahan Karat | Tabung Baja Tahan Karat | ||||
| Bahan Baja Paduan | Bahan Baja Paduan | ||||
| Tabung Paduan Tembaga & Tembaga | Tabung Paduan Tembaga & Tembaga | ||||
| Tabung Sirip Monometalik | Tabung Sirip Rendah | Baja Karbon, baja tahan karat, titanium, tembaga, kuningan, paduan nikel, dll. | - | 9,52 ~ 40 | 12, 16, 19 28 FPI, dll. |
| Tabung Turbo-C | |||||
| Tabung Turbo-E | |||||
| Tabung Bergelombang | Semua Jenis Material | - | 6,35 ~ 40 | 2 ~ 9FPI |
Sorotan Produk
