Pemanas limbah kinerja tinggi boiler ekonomis dengan multiheaders
Detail Produk
| Ukuran: | disesuaikan | Aplikasi: | Pembangkit Listrik/WTE/Insinerasi Limbah |
|---|---|---|---|
| Output: | Air Panas/Uap | BAHAN BAKAR: | Batubara; minyak; biomassa |
| Bahan: | Baja karbon | Standar: | Asme & GB |
| Menyoroti |
Berbagai Header Boiler Economizer,Economizer Boiler Kinerja Tinggi,Penghematan Kotel Penghematan Limbah |
||
Deskripsi Produk

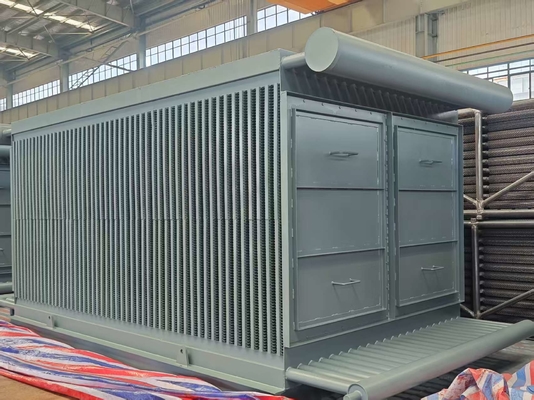

Pemanas limbah kinerja tinggi boiler ekonomis dengan multiheaders
Bagaimana economizer mempengaruhi suhu knalpot boiler?
Setiap penurunan suhu knalpot 20-25 °C meningkatkan efisiensi sebesar ~ 1%.
Deskripsi penghemat
Fungsi
1. menyerap panas dari gas asap suhu rendah, mengurangi suhu knalpot asap, mengurangi kehilangan asap dan menghemat bahan bakar.
2Karena air masuk dipanaskan di penghemat sebelum masuk ke drum, penyerapan panas air masuk di permukaan pemanasan berkurang,dan economizer dapat digunakan untuk mengganti bagian dari permukaan pemanasan penguapan mahal.
3Ketika suhu air masuk ditingkatkan, perbedaan suhu dinding akan berkurang dan tekanan termal akan berkurang sesuai untuk memperpanjang masa pakai drum uap.
Spesifikasi
| Deskripsi | Penjimat boiler |
| Bahan | Baja paduan, baja karbon, SA210C, SA213T22, dll. |
| Standar bahan | ASTM, EN atau ISO dll. |
| Dimensi | Pengaturan khusus |
| Berat badan |
Min: 10 ton Maks.:1000 ton |
| Proses peleburan: | EF+LF + VD |
| Proses | Material→Ingot → Hot/Cold-Rolling→ Pengolahan panas (Normalizing+ tempering) → Inspeksi →Pengolahan kasar→UT →Pengolahan panas kedua →Pengolahan akhir →Pengolahan |
| Standar UT | ASTM A388 atau EN10228, dll. |
Aplikasi
Industri terkait: Csiklus ombinedpembangkit listrik"Generator uap pemulihan panas ((HRSG).
Economizer biasanya digunakan sebagai bagian dariGenerator uap pemulihan panas(HRSG) dalamsiklus gabunganPada HRSG, air melewati penghemat, kemudianboilerdan kemudian asuperheaterEconomizer juga mencegah banjir boiler dengan air cair yang terlalu dingin untuk direbus mengingat arus dan desain boiler.
