SA210A1 Boiler Economizer untuk Incinerator Limbah Standar ASME
Detail Produk
| Product Name: | Boiler Economizer | Application: | Waster Incinerator |
|---|---|---|---|
| Material of Base Tube: | SA210A1 | Tube Dimension: | OD50.8mm*5.17mm MWT |
| Production Technique: | Tube Bending | Fabrication Standard: | ASME |
| Menyoroti |
ASME Standard Boiler Economizer,economizer insinerator limbah,SA210A1 Boiler Economizer |
||
Deskripsi Produk
| Atribut | Nilai |
|---|---|
| Nama produk | Boiler Economizer |
| Aplikasi | Incinerator limbah |
| Bahan tabung dasar | SA210A1 |
| Dimensi tabung | OD50.8mm*5.17mm MWT |
| Teknik Produksi | Pengelompokan tabung |
| Standar Pabrik | ASME |

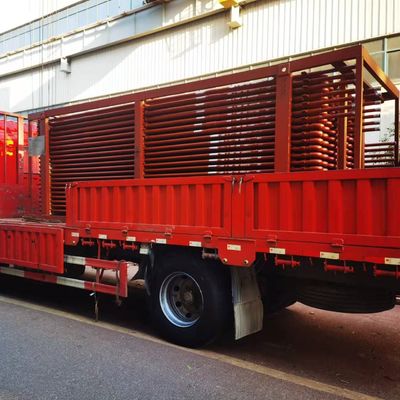

Boiler Economizer SA210A1 dengan borgol dan pelindung tabung dirancang untuk aplikasi insinerator limbah.Perangkat pemulihan panas ini dipasang di bagian bawah kompor ekor boiler untuk secara efisien memulihkan panas limbah dari gas buang.
| Deskripsi | Spesifikasi |
|---|---|
| Bahan | SA210A1 dan SA36 |
| Standar bahan | ASME |
| Dimensi | Pengaturan khusus |
| Berat badan | Min: 10 ton Max: 1000 ton |
- Persiapan bahan
- Pengelompokan dan Pengelompokan Tabung
- Pengelasan Butt
- Manufaktur Perisai
- Perhimpunan 1
- RT (Pengujian radiografi)
- Pengelasan Genggam dan Perisai
- Rapat 2
- Uji hidro
- Membersihkan dan Mewarnai
- Membungkus Ke Dalam Bingkai
Boiler economizer bekerja dalam tiga tahap pemanasan yang berbeda: pemanasan air pakan, penguapan, dan pemanasan.membuatnya permukaan pemanasan suhu terendah dalam sirkuit uap dan air boilerCairan kerja yang melewati peralatan ini adalah air monofasik (non-boiling economizer).
- Mengembalikan panas limbah dari gas buang
- Mengurangi suhu gas buang asap
- Meningkatkan efisiensi energi
- Cocok untuk aplikasi industri
- Dimensi dan spesifikasi yang dapat disesuaikan
- Manufaktur standar ASME
Produk kami telah diterapkan secara luas di pembangkit listrik utama di seluruh China, memberikan manfaat ekonomi yang stabil dan signifikan.Kami mempertahankan fokus yang kuat pada pengembangan produk dan peningkatan kualitas, sementara secara aktif memperluas kehadiran pasar internasional kami melalui kemitraan strategis.
