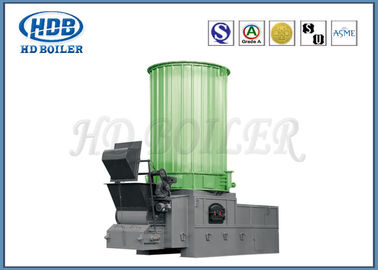

YLL / YGL Batubara Berbahan Bakar Boiler Pembawa Panas Organik Vertikal / Tabung Air
Detail Produk
| Kondisi: | Baru | Struktur: | Tabung Api / Air |
|---|---|---|---|
| Bahan Bakar Tersedia: | Batu bara | Gaya Pembakaran: | Boiler Pengapian Internal |
| Tingkat Manufaktur: | Sebuah | Pengobatan permukaan: | Dilukis |
| Operasi: | Otomatis | Place Style: | Vertikal |
| Menyoroti |
boiler fluida termal,boiler minyak pemanas |
||
Deskripsi Produk
Fitur struktural
1, YLL / YGL tipe seri tungku pembawa panas organik untuk paket parut rantai sirkulasi paksa / boiler tungku tetap.Boiler berdasarkan bodi atas dan komposisi parut bawah / tungku tetap, kombinasi lokasi kerja.
2, permukaan pemanas Boiler menggunakan kumparan melingkar baris padat, di dalam dan di luar, komposisi tabung melingkar baris ketat multilayer.
3, struktur Boiler kompak, mencakup area seluas kecil, tingkat perakitan tinggi, periode pemasangan pendek.
Keunggulan kinerja
1, hemat energi
2, Aman dan andal
3, perlindungan lingkungan
Parameter
|
Model
|
YGL -180 juta |
YGL -3000 juta |
YGL -350 juta |
YGL -460 juta |
YGL -700M |
YGL -1000 juta |
YGL -1200M |
YGL -1400 juta |
YGL -1600 juta |
YGL -1900 juta |
|
Disampaikan heatx× 104kkal / jam |
15 | 25 | 30 | 40 | 60 | 80 | 100 | 120 | 140 | 160 |
|
Efisiensi pemanasan sistem (%) |
73 | 73 | 73 | 73 | 76 | 76 | 76 | 76 | 78 | 78 |
|
Tekanan desain (Mpa) |
1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
|
Max. Suhu kerja (ºC) |
320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
|
Kecepatan sirkulasi sedang m 3 / jam |
12.5 | 40 | 40 | 60 | 80 | 100 | 100 | 100 | 100 | 160 |
|
Diameter pipa utama (DN) |
40 | 80 | 80 | 100 | 100 | 125 | 125 | 125 | 125 | 150 |
|
Kapasitas instalasi (kW) |
8.5 | 15 | 18 (15) | 24 (20) | 28 (25) | 45 (40) | 53 (48) | 60 (55) | 60 | 80 (73) |
|
Bahan bakar yang dapat digunakan |
Batubara lunak dan batubara antrasit | |||||||||
Bengkel Produksi
Sertifikasi
Pengenalan Perusahaan
Didirikan pada tahun 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (diperdagangkan sebagai HD Boiler), adalah produsen industri profesional, memproduksi boiler utilitas, boiler industri, boiler HRSG dan semua jenis bagian boiler, seperti panel waterwall, economizers, air preheaters, superheater, header, spiral fin tube, H-fin tube, heat pipe dll. HD Boiler terletak di Dong Lai Industrial Park, pinggiran timur Kota Gang Zhang Jia.Lokasi pabrik sekitar 150km Expressway ke Shanghai Port
