Boiler Air Panas Berbahan Bakar Gas Horizontal Otomatis, Ketel Uap Tekanan Tinggi ISO9001
Detail Produk
| Kondisi: | Baru | Struktur: | Tabung api |
|---|---|---|---|
| Bahan Bakar Tersedia: | Berbahan Bakar Gas, Minyak-Fird, Berbahan Bakar Diesel | Nilai Tekanan Kerja (Mpa): | 1.0-1.25 |
| Kapasitas Penguapan: | 1-20t / jam | Suhu Uap Terukur: | 184-193 |
| Pengobatan permukaan: | Dilukis | Operasi: | Otomatis |
| Pengguna Biasa: | Makanan dan Tekstil dan Hotel dan Minyak Dipecat | Penempatan: | Boiler Horisontal |
| Menyoroti |
boiler uap industri,boiler air panas berbahan bakar batubara |
||
Deskripsi Produk

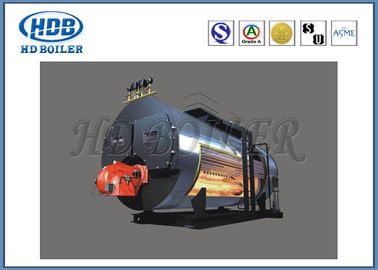

Mulai cepat WNS OIL (GAS) Ketel uap Air Panas Berbahan Bakar Jejak Kecil dengan ISO9001
Fitur struktural
1,Boiler seri WNS mengadopsi struktur back liner basah tiga balik horizontal adalah tungku bergelombang, Terutama oleh cangkang pot, tungku, ruang asap kemudi, tabung asap dll.
2, Boiler cocok untuk minyak ringan, minyak berat, minyak alam, gas minyak cair, gas kota dan bahan bakar lainnya.
Keunggulan kinerja
- Gunakan struktur liner basah, gelombang permukaan pemanas tungku kembali, tata letak simetris, secara efektif mengurangi tekanan termal, meningkatkan keamanan dan kehidupan boiler.
- Menggunakan pipa asap benang untuk meningkatkan efek perpindahan panas dari pipa buang.
- Tata letak permukaan pemanas boiler masuk akal, efisiensi termal tinggi, mulai cepat.
- Ruang bakar steam boiler mengadopsi posisi low, sehingga range keselamatan level air boiler lebih besar, steam boiler lebih besar, kualitas steam terjamin dengan baik.
- Menggunakan pembakar merek terkenal internasional dan sistem kontrol otomatis canggih, pembakaran lebih stabil, operasi lebih nyaman, operasi lebih aman.
- Struktur boiler kompak, tapak kecil, pemasangan cepat.
Parameter
| Model | WNS 2-1.0-Y, Q |
WNS 4-1.25Y, Q |
WNS 6-1.25-Y, Q |
WNS 8-1.25-Y, Q |
WNS 10-1.25-Y, Q |
WNS 15-1.25-Y, Q |
WNS 20-1.25-Y, Q |
|
| Kapasitas penguapan terukur (t / jam) | 2 | 4 | 6 | 8 | 10 | 15 | 20 | |
| Nilai tekanan kerja (MPa) | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |
| Suhu uap terukur | 184 | 193 | 193 | 193 | 193 | 193 | 193 | |
| Suhu suplai keausan | 20 | 20 | 60 | 60 | 60 | 104 | 104 | |
| Volume boiler (m3) | 3.2 | 7.4 | 10.6 | 11.7 | 14.4 | 16.8 | 21.2 | |
| Efisiensi desain (%) | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Bahan bakar yang dapat digunakan |
Minyak ringan, minyak berat, gas natura, gas cair dan gas batubara perkotaan |
|||||||
| Ukuran luar | Panjang A (mm) | 5084 | 6022 | 7151 | 7600 | 8360 | 9050 | 9650 |
| Lebar B (mm) | 2450 | 2700 | 2800 | 3000 | 3000 | 4500 | 5.000 | |
| Tinggi H (mm) | 2380 | 2684 | 2882 | 3200 | 3200 | 5200 | 5600 | |
| Berat boiler (t) | 7.2 | 12.6 | 17.2 | 18.6 | 23.5 | 36.2 | 45.5 | |
| Diamater bukaan steam utama (mm) | 65 | 100 | 125 | 150 | 150 | 200 | 200 | |
| Diameter katup pengaman (mm) | 40 × 2 | 50 × 2 | 65 × 2 | 65 × 2 | 80 × 2 | 100 × 2 | 100 × 3 | |
| Diameter cerobong asap (mm) | 350 | 450 | 600 | 700 | 750 | 900 |
1000 |
|
Pengenalan Perusahaan
Didirikan pada tahun 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (diperdagangkan sebagai HD Boiler), memproduksi pembangkit listrik;industri;buang panas;pembakaran sampah;biomassa;pembawa panas organik dan ketel uap listrik.Ditambah dengan rangkaian luas permukaan pemanas, HD Boiler menghadirkan layanan unik ke pasar termasuk desain boiler, fabrikasi, pemasangan, pemeliharaan, dan penggantian suku cadang tekanan boiler.
