Header Manifold Boiler Pembangkit Listrik, Header Steam Boiler Piping ASME Standrd
Detail Produk
| Kondisi: | Baru | Struktur: | Tabung Api/Air |
|---|---|---|---|
| Bahan bakar: | Batubara/Gas/Batubara/Air panas | Jenis: | Bagian Ketel |
| Tekanan: | Tekanan Rendah / Tinggi | Rentang Aplikasi: | Pembangkit Listrik/Industri |
| Spesifikasi: | Disesuaikan | Tingkat Manufaktur: | A |
| Pengobatan permukaan: | Dilukis | Kode HS: | 3215960855 |
| Menyoroti |
header boiler koleksi oem,Pipa Header Boiler Uap ASME,Pipa Header Boiler Uap Dicat |
||
Deskripsi Produk
Power Station Boiler Header Heating Power Kimia Minyak Industri Kimia unit boiler SGS
Deskripsi Produk

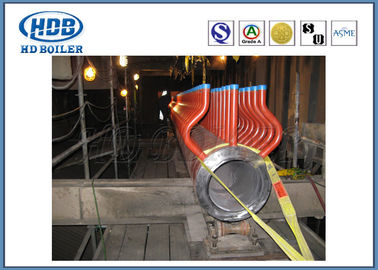

Header boiler memiliki header dinding air, header superheater, header economizer dan sebagainya, berfungsi sebagai pengumpulan, campuran, mendistribusikan ulang media kerja.Dari strukturnya dapat diklasifikasikan sebagai tipe penutup ujung (end closure) dan tipe necking down.
Titik kritis untuk membuat penutup ujung adalah proses pengelasan.Kami mengadopsi proses pembuatan lanjutan, perangkat ukuran besar lengkap dan teknologi matang.Terutama pengelasan penutup ujung dengan tajuk, kami mengadopsi pengelasan terendam otomatis, metode pengelasan ini ditampilkan dengan efisiensi produksi yang tinggi, kualitas yang baik, penampilan artistik dan operasi yang aman dan andal.
Parameter teknis header bagian tekanan boiler desain pelanggan untuk boiler CFB
| Diameter (OD) | ￠ 76mm ~￠914mm |
| Panjang (Max) | 23000mm |
| Suhu (℃) | 300 ~ 1500 |
Bahan
1. Baja karbon: 20G, SA-106B, SA-106C, dll.
2. Baja tahan panas paduan rendah: 15CrMoG, 12Cr1MoVG, SA-335P12, SA335-P22, dll.
3. Baja tahan panas paduan menengah: SA-335P91, dll.
4. Bahan khusus (ultra-supercritical): SA-335P122, SA-335P92, dll.
fitur
1. Laporan perhitungan kekuatan dengan informasi material terapan;
2. Laporan 100% NDT (inspeksi non-destruktif) pelat baja, tabung dan batang las;
3. Laporan inspeksi sinar-X 100% (pengelasan jahitan): untuk memastikan kualitas seluruh boiler;
4. Laporan uji hidrolik: memastikan tekanan kerja standar dan safet
Bengkel
Sertifikasi
Keunggulan kompetitif
Kontrol kualitas dan manajemen untuk seluruh proses produksi, termasuk peleburan ingot, pengerolan panas, perlakuan panas, permesinan, dan inspeksi akhir yang ketat sebelum pengiriman.
Kualitas dan layanan produk yang sangat baik, harga yang kompetitif, pengiriman "tepat waktu"
