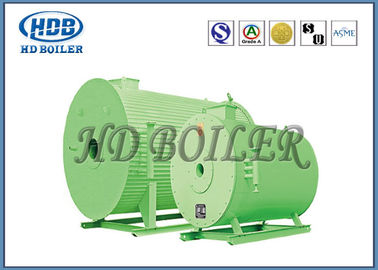

Penghematan Bahan Bakar Industri Thermic Fluid Boiler / Sistem Boiler Minyak Panas Kayu Limbah
Detail Produk
| Bahan bakar: | Gas, Minyak | Struktur: | Kumparan heliks |
|---|---|---|---|
| Gaya Pembakaran: | pembakaran internal | Pemakaian: | Industri |
| Paket Transportasi: | Pengepakan layak laut | Kode HS: | 3215960855 |
| Kapasitas terpasang: | 14.5kw ~ 341kw | Pelabuhan: | Shanghai |
| Menyoroti |
boiler fluida termal,sistem boiler minyak panas |
||
Deskripsi Produk
Penghematan Bahan Bakar Industri Thermic Fluid Boiler / Sistem Boiler Minyak Panas Kayu Limbah
Deskripsi
Boiler minyak termal menyala melalui kumparan heliks dan menghasilkan energi dari produk panas pembakaran dengan memanaskan kumparan melalui radiasi dan konveksi.Koil memanaskan minyak panas atau fluida yang dipompa melalui boiler minyak termal.Minyak termal memanaskan kumparan dalam berbagai jenis penukar panas.Tidak seperti ketel air atau uap, proses pemanasan ini tidak memberikan tekanan berat pada sistem.
Parameter Teknis
|
Model YYL (W) |
4700 Y (Q) |
5900 Y (Q) |
7000 Y (Q) |
8200 Y (Q) |
9400 Y (Q) |
10500 Y (Q) |
12000 Y (Q) |
14000 Y (Q) |
16300 Y (Q) |
||
| Nilai daya (kw) | 4700 | 5900 | 7000 | 8200 | 9400 | 10500 | 12000 | 14000 | 16300 | ||
| Pasokan panas × 104(kCal / jam) | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1400 | ||
| Efisiensi termal (%) | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ||
| Tekanan desain (MPa) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | ||
| Suhu kerja maksimum (℃) | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | ||
| Tingkat sirkulasi sedang (m3/ h) | 260 | 300 | 340 | 400 | 520 | 600 | 600 | 680 | 800 | ||
| Kapasitas medium tungku (m3) | 8.4 | 8.8 | 10.5 | 11.2 | 11.5 | 13 | 15 | 18 | 23 | ||
| Diameter yang kompeten (DN) | 200 | 250 | 250 | 250 | 300 | 300 | 300 | 350 | 350 | ||
| Kapasitas (kw) | 98.5 | 121.5 | 148.5 | 155 | 195 | 235 | 235 | 295 | 341 | ||
| Bahan bakar yang dapat digunakan | Minyak gas | ||||||||||
| Konsumsi bahan bakar Kg / jam (minyak) | 435 | 545 | 660 | 760 | 875 | 980 | 1140 | 1360 | 1600 | ||
|
Ukuran (￠ · H) m |
Tungku minyak vertikal | 3,2 × 7 | 3,3 × 7,5 | 3,5 × 8,2 | 3.62 × 9.2 | 3,7 × 9,6 | 3.65 × 11 | 3.65 × 11 |
3,98 × 11.8 |
4,06 × 12.8 |
|
| Tungku minyak horizontal | 3.23 × 6.7 |
3.26 × 7.45 |
3.26 × 7.9 | 3,62 × 9 | 3,6 × 9,48 |
3,65 × 10.4 |
3,65 × 10.4 |
3,98 × 11.5 |
4,06 × 12.5 |
||
|
Sirkulasi pompa |
Model WRY | 125-100-257 |
125- 100-260 |
150-125-270 | 125-100-250 | 125-100-257 | 125-100-260 | 150-100-260 | 150-125-270A | 150-125-280 | |
| Arus (m3/ h) | 260 | 300 | 340 | 200× 2 | 260× 2 | 300 × 2 | 300 × 2 | 340 × 2 | 400 × 2 | ||
| Angkat (m) | 70 | 70 | 76 | 60 | 70 | 70 | 70 | 76 | 78 | ||
| Daya (kw) | 75 | 90 | 110 | 55× 2 | 75× 2 | 90 × 2 | 90 × 2 | 110 × 2 | 132 × 2 | ||
fitur
1. Hemat energi
2. Aman dan terpercaya
3. Mudah dipasang
4. Dapat digunakan bahan bakar
5. Industri aplikasi
Pengenalan Perusahaan
Didirikan pada tahun 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (diperdagangkan sebagai HD Boiler), memproduksi pembangkit listrik;industri;buang panas;pembakaran sampah;biomassa;pembawa panas organik dan ketel uap listrik.Ditambah dengan rangkaian luas permukaan pemanas, HD Boiler menghadirkan layanan unik ke pasar termasuk desain boiler, fabrikasi, pemasangan, pemeliharaan, dan penggantian suku cadang tekanan boiler.
1. Fabrikasi seluas 200.000 meter persegi
2. 150 Insinyur
3. 600 tukang las berkode
4. 60 Pengawas Berlisensi (instruktur NDT Level-III)
5. Lisensi Kelas-A untuk Desain dan Pembuatan Boiler
6. Sistem Mutu ISO 9001: 2008
7. Sertifikat ASME untuk Power Boiler
8. Otorisasi stempel ASME 'S', 'U' dan NB
