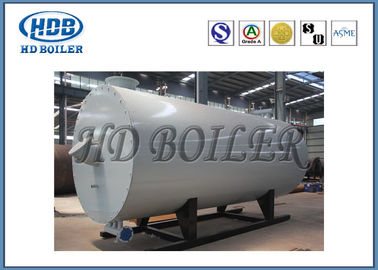

Boiler Minyak Termal Industri Horisontal, Ketel Uap Berbahan Bakar Minyak Tekanan Rendah
Detail Produk
| Tekanan: | Tekanan rendah | Gaya Pembakaran: | Boiler Pengapian Internal |
|---|---|---|---|
| Place Style: | Horisontal | Pemakaian: | Industri |
| Media: | Bahan Perpindahan Panas Organik | Tingkat Manufaktur: | Sebuah |
| Sirkulasi Air: | Sirkulasi Alami | Nilai daya: | 350Kw - 16300Kw |
| Menyoroti |
boiler fluida termal,sistem boiler minyak panas |
||
Deskripsi Produk
Boiler pembawa panas organik gas minyak tipe horizontal Efisiensi tinggi mudah dipasang
Lingkup produk
Output panas: (30 - 1500)× 104kCal / jam
Tekanan desain: .1.1 MPa
Fitur struktural
• YYW seri horisontal tungku pembawa panas organik bagian dalam, luar (dalam dan luar) tabung bundar tertutup merupakan permukaan pemanas radiasi kumparan dalam, permukaan luar, kumparan luar dan permukaan pemanasan konveksi kumparan dalam.
•Ruang bakar eksotermik untuk pembakaran bahan bakar termasuk koil tersusun, sebagian besar panas diserap oleh permukaan pemanas radiasi, gas buang suhu tinggi ke permukaan pemanas konveksi dan penukar panas.
•Retrofit ekor boiler dengan permukaan pemanas ekor, mengurangi suhu gas buang boiler, gas buang suhu rendah dari outlet gas buang boiler langsung dibuang ke cerobong asap dan ke atmosfer.
Parameter produk
|
Model YYL (W) |
350 Y (Q) |
600 Y (Q) |
900 Y (Q) |
1200 Y (Q) |
1500 Y (Q) |
1800 Y (Q) |
23.00 Y (Q) |
2900 Y (Q) |
3500 Y (Q) |
||
| Nilai daya (kw) | 350 | 600 | 900 | 1200 | 1500 | 1800 | 23.00 | 2900 | 3500 | ||
| Pasokan panas × 104(kCal / jam) | 30 | 50 | 75 | 100 | 160 | 150 | 200 | 250 | 300 | ||
| Efisiensi termal (%) | ≥88 | ≥88 | ≥88 | ≥88 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ||
| Tekanan desain (MPa) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | ||
| Suhu kerja maksimum (℃) | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | ||
| Tingkat sirkulasi sedang (m3/ h) | 40 | 58 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | ||
| Kapasitas medium tungku (m3) | 0.4 | 0.6 | 0.6 | 0.8 | 1.2 | 2.1 | 2.6 | 3.5 | 7.8 | ||
| Diameter yang kompeten (DN) | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 200 | 200 | ||
| Kapasitas (kw) | 14.5 | 18 | 31 | 37.5 | 49.5 | 57.5 | 61.5 | 75 | 75 | ||
| Bahan bakar yang dapat digunakan | Minyak gas | ||||||||||
| Konsumsi bahan bakar Kg / jam (minyak) | 34 | 56 | 84 | 111 | 141 | 163 | 217 | 273 | 326 | ||
|
Ukuran (￠ · H) m |
Tungku minyak horizontal | 1.2 × 2.4 | 1,7 × 3 | 1,82 × 3,5 | 1,92 × 4 | 1,95 × 4,3 | 2,4 × 4,3 | 2.52 × 5.3 | 2.8 × 6.3 | 2,92 × 6 | |
|
Sirkulasi pompa |
Model WRY | 80-50-180 | 100-65-190 | 100-65-230 | 100-65-240 | 100-65-257 | 125-80-250 | 125-80-250 | 125-100-250 | 125-100-250 | |
| Arus (m3/ h) | 40 | 60 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | ||
| Angkat (m) | 40 | 38 | 55 | 70 | 80 | 60 | 60 | 60 | 60 | ||
| Daya (kw) | 7.5 | 11 | 22 | 30 | 37 | 45 | 45 | 55 | 55 | ||
|
Model YYL (W) |
4700 Y (Q) |
5900 Y (Q) |
7000 Y (Q) |
8200 Y (Q) |
9400 Y (Q) |
10500 Y (Q) |
12000 Y (Q) |
14000 Y (Q) |
16300 Y (Q) |
||
| Nilai daya (kw) | 4700 | 5900 | 7000 | 8200 | 9400 | 10500 | 12000 | 14000 | 16300 | ||
| Pasokan panas × 104 (kCal / jam) | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1400 | ||
| Efisiensi termal (%) | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ||
| Tekanan desain (MPa) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | ||
| Suhu kerja maksimum (℃) | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | ||
| Tingkat sirkulasi sedang (m3 / jam) | 260 | 300 | 340 | 400 | 520 | 600 | 600 | 680 | 800 | ||
| Kapasitas medium tungku (m3) | 8.4 | 8.8 | 10.5 | 11.2 | 11.5 | 13 | 15 | 18 | 23 | ||
| Diameter yang kompeten (DN) | 200 | 250 | 250 | 250 | 300 | 300 | 300 | 350 | 350 | ||
| Kapasitas (kw) | 98.5 | 121.5 | 148.5 | 155 | 195 | 235 | 235 | 295 | 341 | ||
| Bahan bakar yang dapat digunakan | Minyak gas | ||||||||||
| Konsumsi bahan bakar Kg / jam (minyak) | 435 | 545 | 660 | 760 | 875 | 980 | 1140 | 1360 | 1600 | ||
|
Ukuran (￠ · H) m |
Tungku minyak horizontal |
3,23 × 6.7 |
3,26 × 7.45 |
3,26 × 7.9 |
3,62 × 9 |
3,6 × 9.48 |
3,65 × 10.4 |
3,65 × 10.6 |
3,98 × 11.5 |
4,06 × 12.5 |
|
|
Sirkulasi pompa |
Model WRY | 125-100-257 |
125- 100-260 |
150-125-270 | 125-100-250 | 125-100-257 | 125-100-260 | 150-100-260 | 150-125-270A | 150-125-280 | |
| Arus (m3 / jam) | 260 | 300 | 340 | 200 × 2 | 260 × 2 | 300 × 2 | 300 × 2 | 340 × 2 | 400 × 2 | ||
| Angkat (m) | 70 | 70 | 76 | 60 | 70 | 70 | 70 | 76 | 78 | ||
| Daya (kw) | 75 | 90 | 110 | 55 × 2 | 75 × 2 | 90 × 2 | 90 × 2 | 110 × 2 | 132 × 2 | ||
Keunggulan kinerja
1. Hemat energi
2. Aman dan terpercaya
3. Mudah dipasang
4. Dapat digunakan bahan bakar
5. Industri aplikasi
Pengenalan Perusahaan
Didirikan pada tahun 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (diperdagangkan sebagai HD Boiler), memproduksi pembangkit listrik;industri;buang panas;pembakaran sampah;biomassa;pembawa panas organik dan ketel uap listrik.Ditambah dengan rangkaian luas permukaan pemanas, HD Boiler menghadirkan layanan unik ke pasar termasuk desain boiler, fabrikasi, pemasangan, pemeliharaan, dan penggantian suku cadang tekanan boiler.
1. Fabrikasi seluas 200.000 meter persegi
2. 150 Insinyur
3. 600 tukang las berkode
4. 60 Pengawas Berlisensi (instruktur NDT Level-III)
5. Lisensi Kelas-A untuk Desain dan Pembuatan Boiler
6. Sistem Mutu ISO 9001: 2008
7. Sertifikat ASME untuk Power Boiler
8. Otorisasi stempel ASME 'S', 'U' dan NB
