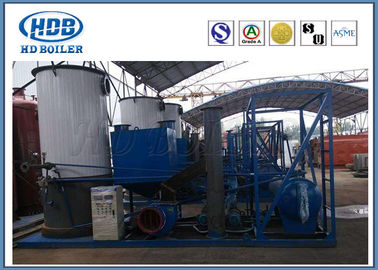

Sistem Boiler Minyak Termal Vertikal Berbahan Bakar Batubara, Boiler Uap Termo Ramah Lingkungan
Detail Produk
| Struktur: | Tabung Api / Air | Bahan Bakar Tersedia: | Batu bara |
|---|---|---|---|
| Gaya Pembakaran: | Boiler Pengapian Internal | Tingkat Manufaktur: | Sebuah |
| Pengobatan permukaan: | Dilukis | Operasi: | Otomatis |
| Place Style: | Vertikal | Kode HS: | 3215960855 |
| Menyoroti |
boiler fluida termal,boiler minyak pemanas |
||
Deskripsi Produk
YLL / YGL Coal Fired Vertical Organic Heat Carrier Boiler yang ramah lingkungan untuk industri
Produksi
Boiler pembawa panas organik adalah peralatan pemanas tipe baru yang dapat menghemat energi dan mengurangi emisi.Ini menggunakan batu bara sebagai bahan bakar dan minyak perpindahan panas sebagai pembawa panas (seperti l-qb, l-qc, l-qd).Ini menggunakan pompa oli yang bersirkulasi untuk membuat pembawa panas berputar secara paksa, setelah itu pembawa panas kembali ke boiler dipanaskan kembali untuk digunakan.Suhu tertinggi yang dapat disuplai oleh boiler pembawa panas organik berbahan bakar batubara adalah 340 ℃, dan tekanan kerja di bawah 0.8mpa, sehingga aman dan andal.
fitur
1, hemat energi
2, Aman dan andal
3, perlindungan lingkungan
Parameter
Data |
Model | Parameter | YGL- 180 juta |
YGL- 300 juta |
YGL- 350 juta |
YGL- 460 juta |
YGL- 700 juta |
YGL- 1000 juta |
YGL- 1200 juta |
YGL- 1400 juta |
YGL- 1900 juta |
|
Nilai daya Kw |
180 | 300 | 350 | 460 | 700 | 1000 | 1200 | 1400 | 1900 | |||
Beban pemanasan × 104kcal / jam |
15 | 25 | 30 | 40 | 60 | 80 | 100 | 120 | 160 | |||
Efisiensi termal% |
71 | 71 | 71 (66) | 71 (66) | 71 (66) | 71 (74) | 71 (74) | 71 (74) | 71 (74) | |||
Tekanan desain Mpa |
0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 1.1 | 1.1 | 1.1 | 1.1 | |||
Suhu kerja maksimal |
320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |||
Kecepatan sirkulasi sedang m 3 / jam |
12.5 | 40 | 40 | 60 | 80 | 100 | 100 | 100 | 160 | |||
Volume sedang dalam boiler m 3 / jam |
0.15 | 0.3 | 0.4 | 0,5 | 0.7 | 1 | 1.1 | 1.2 | 1.6 | |||
Kalber dari tabung induk DN |
40 | 80 | 80 | 100 | 100 | 125 | 125 | 125 | 150 | |||
Kapasitas terpasang kw |
8.5 | 15 | 18 (15) | 24 (20) | 28 (25) | 45 (40) | 53 (48) | 60 (55) | 80 (73) | |||
Batubara yang sesuai |
Batubara lunak, batubara buta | |||||||||||
Konsumsi batubara kg / jam |
48 | 75 | 85 | 110 | 170 | 225 | 280 | 340 | 455 | |||
| Kipas | Model |
- | T4-72 3A | T4-72 3A | T4-72 3A | T4-72 3A | T4-72 3.5A | T4-72 3.5A | T4-72 3.5A | T4-72 4A | ||
Aliran m 3 / jam |
- | 1588-3049 | 1588-3049 | 1588-3049 | 1588-3049 | 2522-4841 | 2522-4841 | 2522-4841 | 2522-4841 | |||
Tekanan angin Pa |
- | 1142-716 | 1142-716 | 1142-716 | 1142-716 | 1556-976 | 1556-976 | 1556-976 | 1275-2036 | |||
Kekuatan Kw |
- | 1.5 | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 | 5.5 | |||
| Kipas angin induksi | Model |
YX5-47 4C | YX5-47 4C | YX5-47 4C | YX5-47 5C | YX5-47 5C | YX9-35 6.3C | YX9-35 6.3C | YX9-35 6.3C | YX9-35 8C | ||
Aliran m 3 / jam |
2750-5060 | 3130-5750 | 3130-5750 | 4840-8900 | 4840-8900 | 9474-10626 | 9474-10626 | 9474-10626 | 15627-17528 | |||
Tekanan angin pa |
1451-990 | 1873-1284 | 1873-1284 | 1843-1265 | 1843-1265 | 2452-2393 | 2452-2393 | 2452-2393 | 2383-2334 | |||
Kekuatan Kw |
3 | 4 | 4 | 5.5 | 5.5 | 11 | 11 | 11 | 18.5 | |||
| Pompa sirkulasi | Model WRY |
50-50-170 | 80-50-180 | 80-50-180 | 100-65-190 | 100-65-200 | 100-65-230 | 100-65-240 | 100-65-257 | 125-80-250 | ||
Aliran m 3 / jam |
12.5 | 40 | 40 | 60 | 60 | 100 | 100 | 100 | 160 | |||
Tinggi m |
32 | 40 | 40 | 38 | 38 | 55 | 70 | 80 | 60 | |||
Kekuatan Kw |
4 | 7.5 | 7.5 | 11 | 11 | 22 | 30 | 37 | 45 | |||
Bengkel Produksi
Sertifikasi
Pengenalan Perusahaan
Didirikan pada tahun 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (diperdagangkan sebagai HD Boiler), adalah produsen industri profesional, memproduksi boiler utilitas, boiler industri, boiler HRSG dan semua jenis bagian boiler, seperti panel waterwall, economizers, air preheaters, superheater, header, spiral fin tube, H-fin tube, heat pipe dll. HD Boiler terletak di Dong Lai Industrial Park, pinggiran timur Kota Gang Zhang Jia.Lokasi pabrik sekitar 150km Expressway ke Shanghai Port
