Horisontal Organik Pembawa Panas Panas Boiler Minyak Batubara Sertifikasi ISO9001
Detail Produk
| Kondisi: | Baru | Struktur: | Tabung Api / Air |
|---|---|---|---|
| Bahan Bakar Tersedia: | Batu bara | Gaya Pembakaran: | Boiler Pengapian Internal |
| Tingkat Manufaktur: | Sebuah | Pengobatan permukaan: | Dilukis |
| Operasi: | Otomatis | Place Style: | Vertikal / Horizontal |
| Kode HS: | 3215960855 | ||
| Menyoroti |
boiler fluida termal,boiler minyak pemanas |
||
Deskripsi Produk

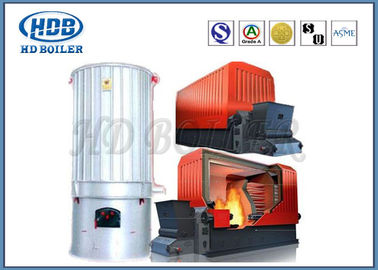

Enengy saving YYL (W) Coal Fired Horizontal Organic Heat Carrier Boiler Sertifikasi ISO9001
Produksi
Asap api dan suhu tinggi yang dihasilkan oleh pembakaran bahan bakar yang lengkap (minyak diesel ringan, minyak berat, minyak sisa, gas alam, gas minyak cair, gas kota, dll.) Pertukaran panas dengan media perpindahan panas organik di dalam pipa melalui transfer radiasi dan transfer konveksi , pada saat yang sama, media perpindahan panas organik bersirkulasi dalam sistem yang didorong oleh pompa.Dan kemudian peralatan menggunakan-panas mengambil panas dari media, yang kembali ke boiler setelah pertukaran panas.Jadi ini adalah sistem sirkulasi panas organik.
fitur
1, hemat energi
2, Aman dan andal
3, perlindungan lingkungan
Parameter
|
Model YYL (W) |
350 Y (Q) |
600 Y (Q) |
900 Y (Q) |
1200 Y (Q) |
1500 Y (Q) |
1800 Y (Q) |
23.00 Y (Q) |
2900 Y (Q) |
3500 Y (Q) |
||
| Nilai daya (kw) | 350 | 600 | 900 | 1200 | 1500 | 1800 | 23.00 | 2900 | 3500 | ||
| Pasokan panas × 104(kCal / jam) | 30 | 50 | 75 | 100 | 160 | 150 | 200 | 250 | 300 | ||
| Efisiensi termal (%) | ≥88 | ≥88 | ≥88 | ≥88 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ||
| Tekanan desain (MPa) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | ||
| Suhu kerja maksimum (℃) | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | ||
| Tingkat sirkulasi sedang (m3/ h) | 40 | 58 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | ||
| Kapasitas medium tungku (m3) | 0.4 | 0.6 | 0.6 | 0.8 | 1.2 | 2.1 | 2.6 | 3.5 | 7.8 | ||
| Diameter yang kompeten (DN) | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 200 | 200 | ||
| Kapasitas (kw) | 14.5 | 18 | 31 | 37.5 | 49.5 | 57.5 | 61.5 | 75 | 75 | ||
| Bahan bakar yang dapat digunakan | Minyak gas | ||||||||||
| Konsumsi bahan bakar Kg / jam (minyak) | 34 | 56 | 84 | 111 | 141 | 163 | 217 | 273 | 326 | ||
|
Ukuran (￠ · H) m |
Tungku minyak vertikal | 1,3 × 2,5 | 2 × 3.5 | 2.1 × 3.5 | 2.2 × 3.5 | 2,2 × 4 | 2.2 × 4.4 | 2.7 × 5.1 | 2,8 × 6,5 | 3,2 × 6,7 | |
| Tungku minyak horizontal | 1.2 × 2.4 | 1,7 × 3 | 1,82 × 3,5 | 1,92 × 4 | 1,95 × 4,3 | 2,4 × 4,3 | 2.52 × 5.3 | 2.8 × 6.3 | 2,92 × 6 | ||
|
Sirkulasi pompa |
Model WRY | 80-50-180 | 100-65-190 | 100-65-230 | 100-65-240 | 100-65-257 | 125-80-250 | 125-80-250 | 125-100-250 | 125-100-250 | |
| Arus (m3/ h) | 40 | 60 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | ||
| Angkat (m) | 40 | 38 | 55 | 70 | 80 | 60 | 60 | 60 | 60 | ||
| Daya (kw) | 7.5 | 11 | 22 | 30 | 37 | 45 | 45 | 55 | 55 | ||
Menguji
Sertifikasi
1. Fabrikasi seluas 200.000 meter persegi
2. 150 Insinyur
3. 600 tukang las berkode
4. 60 Pengawas Berlisensi (instruktur NDT Level-III)
5. Lisensi Kelas-A untuk Desain dan Pembuatan Boiler
6. Sistem Mutu ISO 9001: 2008
7. Sertifikat ASME untuk Power Boiler
8. Otorisasi stempel ASME 'S', 'U' dan NB
Pengenalan Perusahaan
Didirikan pada tahun 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (diperdagangkan sebagai HD Boiler), adalah produsen industri profesional, memproduksi boiler utilitas, boiler industri, boiler HRSG dan semua jenis bagian boiler, seperti panel waterwall, economizers, air preheaters, superheater, header, spiral fin tube, H-fin tube, heat pipe dll. HD Boiler terletak di Dong Lai Industrial Park, pinggiran timur Kota Gang Zhang Jia.Lokasi pabrik sekitar 150km Expressway ke Shanghai Port
