YLW Coal Fired Horizontal Thermal Oil Boiler Sertifikasi SGS Emisi Polusi Rendah
Detail Produk
| Kondisi: | Baru | Struktur: | Tabung Api / Air |
|---|---|---|---|
| Bahan Bakar Tersedia: | Batu bara | Gaya Pembakaran: | Boiler Pengapian Internal |
| Tingkat Manufaktur: | Sebuah | Pengobatan permukaan: | Dilukis |
| Operasi: | Otomatis | Place Style: | Horisontal |
| Kode HS: | 3215960855 | ||
| Menyoroti |
pemanas minyak boiler,sistem boiler minyak panas |
||
Deskripsi Produk

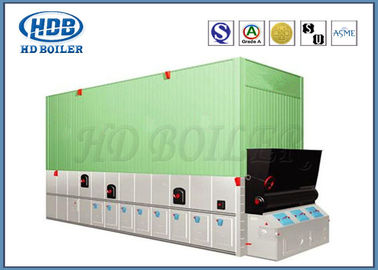

Emisi polusi rendah YLW Coal Fired Horizontal Organic Heat Carrier Boiler Sertifikasi SGS
Produksi
Boiler medium-panas organik YLW adalah boiler parut rantai sirkulasi paksa yang dikemas.Bagian depan badan ketel adalah area pemanasan radiasi perapian yang terdiri dari kumparan persegi ganda yang sejajar erat.Bagian belakang adalah area pemanasan flush konveksi dari bank tabung koil.Boiler disusun ke dalam body drum di ruang asap panas pembakaran.Panas dari boiler digunakan untuk memanaskan udara sesuai kebutuhan untuk pembakaran boiler di dalam air preheater.Kemudian asap knalpot di luar dengan cerobong melalui pengumpul debu dan kipas angin.
fitur
1, hemat energi
2, Aman dan andal
3, perlindungan lingkungan
Parameter
| Model | YLW-1900MA | YLW-2300MA | YLW-2900MA | YLW-3500MA | YLW-4100MA | YLW-4700MA | YLW-5900MA | YLW-7000MA |
| Menghasilkan panas × 104 (kCal / jam) | 160 | 200 | 250 | 300 | 350 | 400 | 500 | 600 |
| Efisiensi pemanasan sistem (%) | 78 | 78 | 79 | 79 | 79 | 80 | 80 | 80 |
| Tekanan desain | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Max. Suhu kerja (℃) | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
| Sirkulasi sedang (m3/ h) | 160 | 160 | 200 | 200 | 200 | 200 | 250 | 250 |
| Diameter pipa utama (DN) | 150 | 150 | 200 | 200 | 200 | 200 | 250 | 250 |
| Kapasitas instalasi (KW) | 75 | 77 | 100 | 100 | 120 | 140 | 175 | 175 |
| Bahan bakar yang dapat digunakan | Batubara lunak, antrasit kelas II dan III | |||||||
| Model | YLW-8200MA | YLW-9400MA | YLW-12000MA | YLW-14000MA | YLW-16500MA | YLW-17500MA | YLW-19000MA | YLW-23500MA |
| Menghasilkan panas × 104 (kCal / jam) | 700 | 800 | 1000 | 1200 | 1400 | 1500 | 1600 | 2000 |
| Efisiensi pemanasan sistem (%) | 80 | 80 | 81 | 81 | 81 | 81 | 81 | 81 |
| Tekanan desain | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Max. Suhu kerja (℃) | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
| Sirkulasi sedang (m3/ h) | 400 | 520 | 600 | 680 | 800 | 1000 | 1000 | 1000 |
| Diameter pipa utama (DN) | 250 | 300 | 300 | 350 | 350 | 400 | 400 | 400 |
| Kapasitas instalasi (KW) | 215 | 270 | 315 | 380 | 460 | 540 | 600 | 620 |
| Bahan bakar yang dapat digunakan | Batubara lunak, antrasit kelas II dan III | |||||||
Bengkel Produksi
Sertifikasi
Keunggulan kompetitif
Kontrol kualitas dan manajemen untuk seluruh proses produksi, termasuk peleburan ingot, pengerolan panas, perlakuan panas, permesinan, dan inspeksi akhir yang ketat sebelum pengiriman.
Kualitas dan layanan produk yang sangat baik, harga yang kompetitif, pengiriman "tepat waktu"
