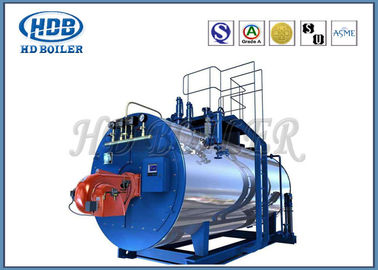

Ketel Uap Berbahan Bakar Minyak / Gas, Pembangkit Uap Industri Efisiensi Tinggi
Detail Produk
| Kondisi: | Baru | Struktur: | Tabung api |
|---|---|---|---|
| Bahan Bakar Tersedia: | Berbahan Bakar Gas, Minyak-Fird, Berbahan Bakar Diesel | Nilai Tekanan Kerja (Mpa): | 1.0-1.25 |
| Kapasitas pemanasan dinilai: | 1,4-14 (MW) | Suhu Uap Terukur: | 184-193 |
| Pengobatan permukaan: | Dilukis | Operasi: | Otomatis |
| Pengguna Biasa: | Makanan dan Tekstil dan Hotel dan Minyak Dipecat | Penempatan: | Boiler Horisontal |
| Menyoroti |
boiler uap industri,boiler air panas berbahan bakar batubara |
||
Deskripsi Produk
Efek Penghematan Energi Yang Luar Biasa WNS OIL (GAS) Ketel Air Panas Berbahan Bakar Uap Dengan Pemasangan Cepat
Fitur struktural
Boiler kondensasi air panas uap berbahan bakar minyak (gas) WNS.Economizer tipe tabung sirip terintegrasi eksternal.Kondensor independen, struktur kompak, perbaikan mudah, efek hemat energi luar biasa.Efisiensi termal bisa 100% sesuai dengan nilai kalori bahan bakar yang rendah.Atas permintaan pengguna, boiler dapat menggunakan kontrol PLC, dan memesan antarmuka yang dioperasikan dari jarak jauh.
Keunggulan kinerja
- Gunakan struktur liner basah, gelombang permukaan pemanas tungku kembali, tata letak simetris, secara efektif mengurangi tekanan termal, meningkatkan keamanan dan kehidupan boiler.
- Menggunakan pipa asap benang untuk meningkatkan efek perpindahan panas dari pipa buang.
- Tata letak permukaan pemanas boiler masuk akal, efisiensi termal tinggi, mulai cepat.
- Ruang bakar steam boiler mengadopsi posisi low, sehingga range keselamatan level air boiler lebih besar, steam boiler lebih besar, kualitas steam terjamin dengan baik.
- Menggunakan pembakar merek terkenal internasional dan sistem kontrol otomatis canggih, pembakaran lebih stabil, operasi lebih nyaman, operasi lebih aman.
- Struktur boiler kompak, tapak kecil, pemasangan cepat.
Parameter
| Model | WNS 2-1.0-Y, Q | WNS 4-1.25Y, Q | WNS 6-1.25-Y, Q | WNS 8-1.25-Y, Q | WNS 10-1.25-Y, Q | WNS 15-1.25-Y, Q | WNS 20-1.25-Y, Q | |
| Kapasitas penguapan terukur (t / jam) | 2 | 4 | 6 | 8 | 10 | 15 | 20 | |
| Nilai tekanan kerja (MPa) | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |
| Suhu uap terukur | 184 | 193 | 193 | 193 | 193 | 193 | 193 | |
| Suhu suplai keausan | 20 | 20 | 60 | 60 | 60 | 104 | 104 | |
| Volume boiler (m3) | 3.2 | 7.4 | 10.6 | 11.7 | 14.4 | 16.8 | 21.2 | |
| Efisiensi desain (%) | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Bahan bakar yang dapat digunakan |
Minyak ringan, minyak berat, gas natura, gas cair dan gas batubara perkotaan | |||||||
| Ukuran luar | Panjang A (mm) | 5084 | 6022 | 7151 | 7600 | 8360 | 9050 | 9650 |
| Lebar B (mm) | 2450 | 2700 | 2800 | 3000 | 3000 | 4500 | 5.000 | |
| Tinggi H (mm) | 2380 | 2684 | 2882 | 3200 | 3200 | 5200 | 5600 | |
| Berat boiler (t) | 7.2 | 12.6 | 17.2 | 18.6 | 23.5 | 36.2 | 45.5 | |
| Diamater bukaan steam utama (mm) | 65 | 100 | 125 | 150 | 150 | 200 | 200 | |
| Diameter katup pengaman (mm) | 40 × 2 | 50 × 2 | 65 × 2 | 65 × 2 | 80 × 2 | 100 × 2 | 100 × 3 | |
| Diameter cerobong asap (mm) | 350 | 450 | 600 | 700 | 750 | 900 | 1000 | |
Keunggulan kompetitif
Kontrol kualitas dan manajemen untuk seluruh proses produksi, termasuk peleburan ingot, pengerolan panas, perlakuan panas, permesinan, dan inspeksi akhir yang ketat sebelum pengiriman.
Kualitas dan layanan produk yang sangat baik, harga yang kompetitif, pengiriman "tepat waktu"
