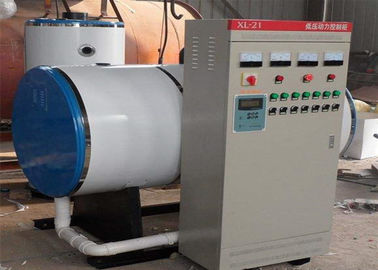

Industri Steam Hot Water Boiler Oil / Gas Multi Fuel Horizontal Sepenuhnya Otomatis
Detail Produk
| Fungsi: | Ketel Uap | Instalasi: | Boiler dikemas |
|---|---|---|---|
| Media: | Uap | Tekanan: | Tekanan mikro |
| Paket Transportasi: | kasus kayu lapis | Penempatan Drum: | Boiler Horisontal |
| Menyoroti |
boiler air panas industri,boiler uap industri |
||
Deskripsi Produk
Boiler Uap Industri Minyak dan Gas Horisontal Multi Bahan Bakar Efektif Sepenuhnya Otomatis
Deskripsi Produk
CLHS otomatis minyak (gas) berbahan bakar tekanan atmosfer boiler air panas mengadopsi struktur vertikal / horizontal Bahan bakar terbakar di bawah tekanan mikro, asap suhu tinggi di funace untuk menyelesaikan proses radiasi dan panas konveksi setelah memasuki atmosfer. untuk pemanas, air hidup, dan produksi panas untuk menyediakan tenaga tanpa akhir.
Parameter teknik
| Model | CLHS | 0,06-85 / 60-YQ | 0,12-85 / 60-YQ | 0,18-85 / 60-YQ | 0,24-85 / 60-YQ | 0,35-85 / 60-YQ | 0,48-85 / 60-YQ | |
| Barang | Satuan | |||||||
| Nilai daya | MW | 0,06 | 0.12 | 0.18 | 0.24 | 0.35 | 0.48 | |
| Panas total | 104Kcal | 5 | 10 | 15 | 20 | 30 | 40 | |
| Dinilai Tekanan Kerja | MPa | Tekanan atmosfir | ||||||
|
Bahan bakar Konsumsi |
Diesel Ringan | Kg / jam | 5.4 | 10.8 | 16.2 | 21.6 | 32.5 | 43.2 |
| Gas kota | Nm3/ h | 14.2 | 28.3 | 42.5 | 56.6 | 85 | 113.2 | |
| Gas alam | Nm3/ h | 5.8 | 11.7 | 17.5 | 23.4 | 35 | 46.8 | |
| LPG | Nm3/ h | 2.5 | 5 | 7.5 | 10 | 15 | 20 | |
| Dia saluran masuk air. | DN | 50 | 65 | 65 | 65 | 65 | 80 | |
| Kembalikan dia pipa. | DN | 50 | 65 | 65 | 65 | 65 | 80 | |
| Dia Katup Blowdown. | DN | 25 | 25 | 25 | 25 | 25 | 40 | |
| Tegangan | V. | 220 | 220 | 220 | 220 | 380 | 380 | |
| Dimensi Keseluruhan | mm |
850 × 760 × 1320 |
1010 × 860 × 1600 |
1170 × 910 × 1820 |
1290 × 1030 × 1980 |
1480 × 1180 × 2050 |
1570 × 1270 × 2120 |
|
| Berat bersih | Kg | 280 | 420 | 460 | 530 | 790 | 960 | |
fitur
• Pembakar kualitas tinggi yang tidak benar (Pembakar NOX rendah), komponen berbahaya dalam gas buang lebih rendah dari Standar Nasional (emisi NOx lebih rendah dari 400mg / m3), jadi produk ramah lingkungan. Atomisasi tekanan, kebisingan rendah, efisiensi tinggi dan keselamatan, (bahan bakar minyak) benar-benar terbakar, dan indikator lingkungan sejalan dengan persyaratan nasional.
• Bak boiler terhubung ke atmosfir, dilengkapi dengan tangki ekspansi, tanpa potensi masalah keselamatan dalam kondisi operasi tekanan atmosfir.
• Operasi boiler mencapai kontrol otomatis dan penyesuaian otomatis suhu saluran keluar air.
Kontrol Quatily
• Fabrikasi seluas 200.000 meter persegi
• 150 Insinyur
• 600 tukang las berkode
• 60 Inspektur Berlisensi (instruktur NDT Level-III)
• Lisensi Kelas-A untuk Desain dan Pembuatan Boiler
• Sistem Mutu ISO 9001: 2008
• Sertifikat ASME untuk Power Boiler
• Otorisasi stempel ASME 'S', 'U' dan NB
