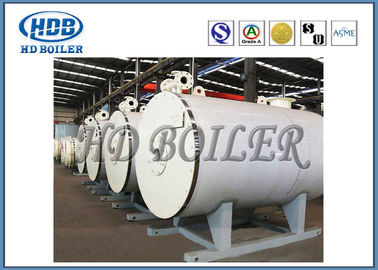

Generator Uap Industri Berbahan Bakar Minyak Horizontal, Boiler Air Panas Tekanan Atmosfer
Detail Produk
| Fungsi: | Ketel Uap | Instalasi: | Boiler dikemas |
|---|---|---|---|
| Media: | Uap | Gaya Pembakaran: | Boiler Pembakaran Chamber |
| jenis tungku: | Bergelombang | Paket Transportasi: | kasus kayu lapis |
| Pemakaian: | Makanan, Minuman, Masakan, Industri | Pelabuhan: | Shanghai |
| Menyoroti |
boiler uap industri,boiler air panas berbahan bakar batubara |
||
Deskripsi Produk
Oil Gas Combine Marine Steam Generator Smoke Tube Kapasitas Kecil
Deskripsi Produk
Boiler air panas tekanan atmosferik berbahan bakar minyak (gas) otomatis CWNS mengadopsi struktur vertikal / horizontal. Bahan bakar terbakar di bawah tekanan mikro, asap suhu tinggi di funace untuk menyelesaikan proses radiasi dan panas konveksi setelah memasuki atmosfer. untuk pemanas, air hidup, dan produksi panas untuk menyediakan tenaga tanpa akhir.
Parameter teknik
| Model | CWNS |
0,58-85 / 60 YQ |
0,7-85 / 60 YQ |
1.05-85 / 60 YQ |
1.4-85 / 60 YQ |
1,75-85 / 60 YQ |
2.1-85 / 60 YQ |
2.8-85 / 60 YQ |
|
| Barang | Satuan | ||||||||
| Nilai daya | MW | 0,58 | 0.7 | 1.05 | 1.4 | 1.75 | 2.1 | 2.8 | |
| Panas total | 104 Kkal | 50 | 60 | 90 | 120 | 150 | 180 | 240 | |
| Dinilai Tekanan Kerja | MPa | Tekanan atmosfir | |||||||
|
Bahan bakar Konsumsi |
Diesel Ringan | Kg / jam | 54 | 65 | 97.5 | 130 | 162 | 195 | 260 |
| Gas kota | Nm3 / jam | 141.5 | 170 | 255 | 340 | 425 | 510 | 680 | |
| Gas alam | Nm3 / jam | 58.5 | 70 | 105 | 140 | 175 | 210 | 280 | |
| LPG | Nm3 / jam | 25 | 30 | 45 | 60 | 75 | 90 | 120 | |
| Dia saluran masuk air. | DN | 100 | 100 | 125 | 150 | 150 | 200 | 200 | |
| Kembalikan dia pipa. | DN | 100 | 100 | 125 | 150 | 150 | 200 | 200 | |
| Dia Katup Blowdown. | DN | 40 | 50 | 50 | 50 | 50 | 65 | 65 | |
| Tegangan | V. | 380 | 380 | 380 | 380 | 380 | 380 | 380 | |
| Dimensi Keseluruhan | mm |
2800 × 1550 × 1790 |
3030 × 1680 × 1820 |
3250 × 1760 × 2960 |
3580 × 1830 × 2020 |
4120 × 1900 × 2120 |
4320 × 1940 × 2160 |
4800 × 2000 × 2280 |
|
| Berat bersih | Kg | 1460 | 1980 | 2480 | 2980 | 3450 |
3920 |
5150 | |
Kontrol Quatily
• Fabrikasi seluas 200.000 meter persegi
• 150 Insinyur
• 600 tukang las berkode
• 60 Inspektur Berlisensi (instruktur NDT Level-III)
• Lisensi Kelas-A untuk Desain dan Pembuatan Boiler
• Sistem Mutu ISO 9001: 2008
• Sertifikat ASME untuk Power Boiler
• Otorisasi stempel ASME 'S', 'U' dan NB
Pengenalan Perusahaan
Didirikan pada tahun 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (diperdagangkan sebagai HD Boiler), memproduksi pembangkit listrik;industri;buang panas;pembakaran sampah;biomassa;pembawa panas organik dan ketel uap listrik.Ditambah dengan rangkaian luas permukaan pemanas, HD Boiler menghadirkan layanan unik ke pasar termasuk desain boiler, fabrikasi, pemasangan, pemeliharaan, dan penggantian suku cadang tekanan boiler.
